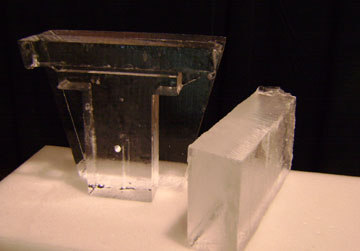

The base pieces (made from 4" ice)

We cut all of the pieces for the dispenser on the CNC

All of the fuses are done with Aluminum

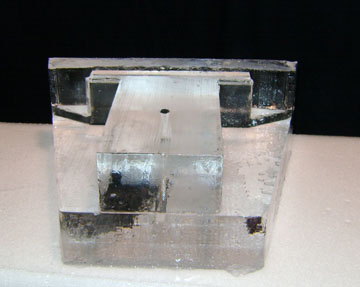

The base pieces frozen together

Turn upside down & add the footer

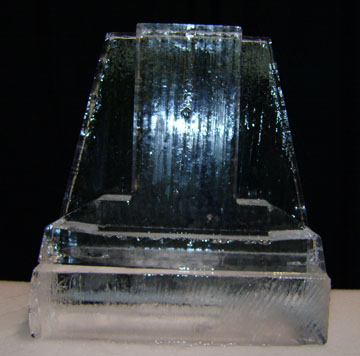

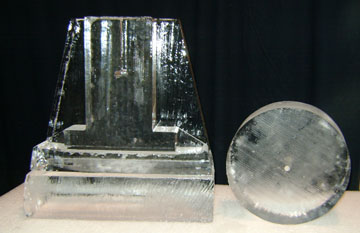

This photo shows the footer frozen on

Turn back right side up

This photo shows the first of 3 top levels

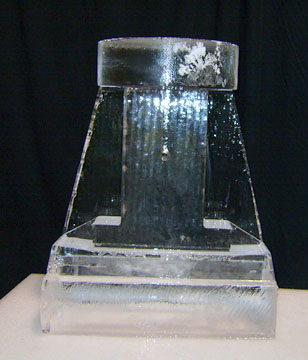

1st Top level frozen on

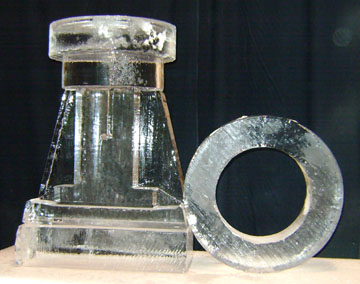

This photo shows the Second of 3 top levels

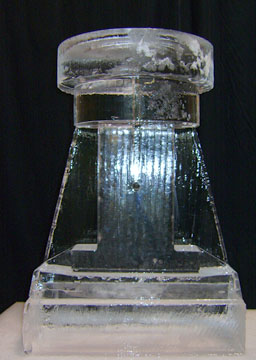

Second top level frozen on

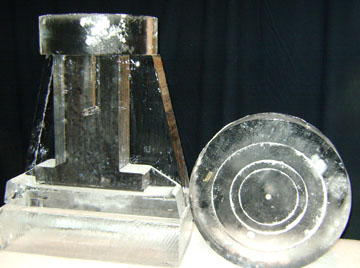

This photo shows the Third of 3 top levels

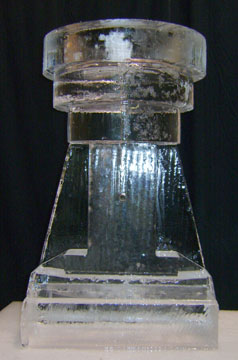

Third top level frozen on

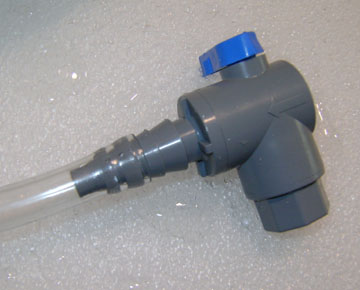

Slide the tubing onto the Tap

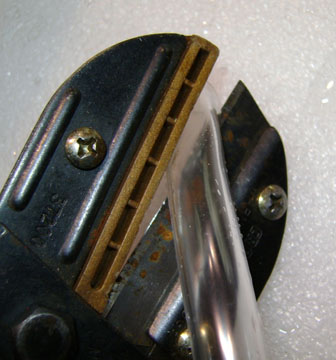

Cut the tube at an angle

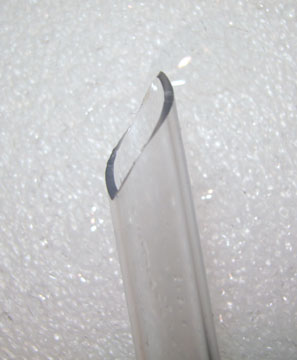

It should look like this

Heat up threaded nipple

Burn into the center of the bowl with the hot  nipple

 On the inside of the bowl, place rubber o ring over the threaded nipple.

Place a washer over the threaded nipple

on the outside of the bowl

Tighten 2 nuts (1 on the inside & 1 on the outside)

Slide the tube up into the L shaped tunnel

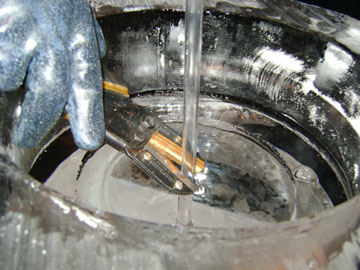

Trim the tube as low as possible

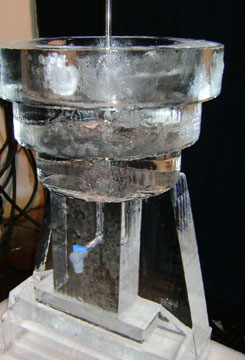

Place the bowl into the top of the sculpture, make sure the threaded nipple goes down into the tube.  (twist the bowl as you insert the nipple into the tube)

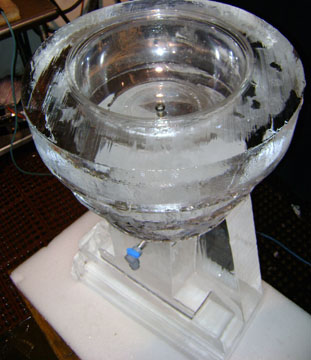

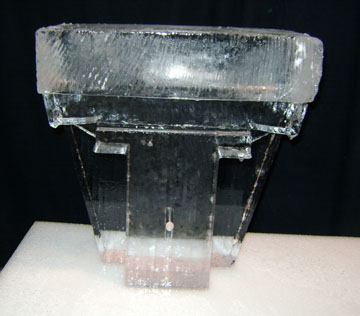

Finished beverage dispenser, after sanding & detailing.
