Slide 2 seals over the post on the long
Spiral Tubing Bracket
& slide the funnel end of the
tube over the blue seals |

Now slide one seal over the short Spiral
Tubing Bracket & push the end of the tube over the blue seal
Only push it on about a 1/2" !!!

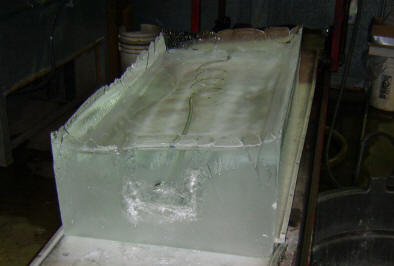

Now you are ready to put the whole assembly in the
block maker |

Place the clips in the block maker
(Notice we are using 2 pumps on day 1) |

Hook the bungee to each bracket (this holds the clip against the can)
***Tip*** Just barely hook the bungee from the bottom (this uses
leverage to hold the clip against the can)
After day 2 you can remove the bungee
|
